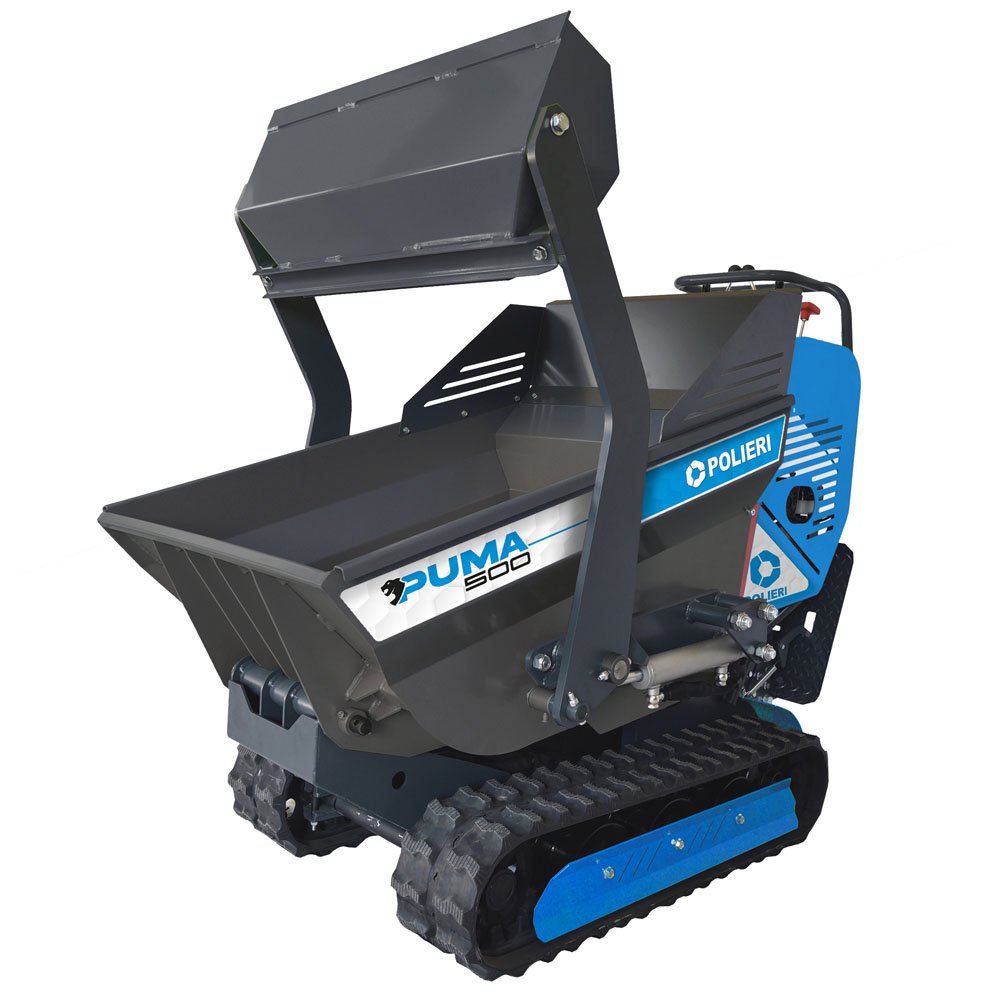

PUMA 500 MINIDUMPER

WITH FRONT-DISCHARGE DUMPER BODY AND SELF-LOADING SHOVEL

The Puma Minidumpers are powerful, compact machines designed for construction and renovation work.
Their compact dimensions make them ideal for operating in confined spaces, while the hydrostatic tipping function simplifies material unloading.
They stand out for their powerful Honda engine with electric start and a high-performance gear pump delivering up to 210 bar of pressure.

specifiche

2 OVERCENTER VALVES
For increased safety, the machine is equipped with overcenter valves that prevent speed increase when descending (even under heavy loads) and ensure stability when parked on uneven ground.

ROLLER BALANCED SYSTEM
The track of the Puma 800 is supported by four rollers—two fixed and two oscillating—allowing the machine to safely overcome significant obstacles.
The Puma 500 and 600 models are equipped with three fixed rollers per side.

HONDA ENGINE
Equipped as standard with an electric start system for easy and reliable ignition.

HYDRAULIC SYSTEM
Fitted with a high-performance gear pump providing up to 210 bar of pressure.
A radiator is not required, as even under extreme working conditions, the oil temperature never reaches critical levels.

TRACKS – TRACK TENSIONERS
The recovery springs in the tensioning system prevent jerks or damage to the tracks and drive components.
Thanks to the long track base and four support rollers per side, the dumper can handle loads even on rough or sloped terrain, with gradients up to 30%.

UNDERCARRIAGE
The chassis is designed to provide a low center of gravity, ensuring stability on all types of terrain.
Constructed from carbon steel with a minimum thickness of 5 mm, and featuring an increased ground clearance of 160 mm for improved obstacle clearance on uneven terrain.
Equipped with lifting hooks for easy transport.

OPERATOR PLATFORM
Comes standard with a large, comfortable, and non-slip platform featuring a vibration-damping system.
The platform is also foldable, reducing space during storage or transport.

The Puma 600 and Puma 800, unlike the 500 model, feature dual-speed transmission for faster on-site movement and can be fitted with a variety of attachments, making them extremely versatile.
Equipped with quick couplings and a support stand as standard, they allow for easy and rapid attachment changes.

Model	500	600	800
Engine	HONDA GX 200	HONDA GX 270	HONDA GX 390
Engine power (kW / rpm)	4.1 / 3600	6.6 / 3600	9.5 / 3600
Fuel tank capacity (L)	3.1	5.3	10
Oil tank (L)	14	14	20
Starting system	Manual	Electric	Electric
Transmission	Hydrostatic	Hydrostatic	Hydrostatic
Hydraulic motors	Orbital	Orbital	Orbital
Travel speed (km/h)	1 speed	2 speeds — 2.5 / 3.5	2 speeds — 2.5 / 3.5
Operating load	500 kg on flat ground — 350 kg on slope	600 kg on flat ground — 350 kg on slope	800 kg on flat ground — 600 kg on slope
Skip capacity (m³)	0.21	0.21	0.32
Maximum gradient	30%	30%	30% (17°)
Track dimensions (mm)	180 × 60 × 38	180 × 60 × 38	200 × 72 × 40
Track tension adjustment	Semi-automatic spring tensioning system
Packaging dimensions (cm)	80 × 160 × 135	80 × 160 × 135	80 × 200 × 165
Weight with packaging (kg)	425	485	750
